Autel MaxiIM IM608 Pro Kit

Key Fob Programmer Autel MaxiIM IM608 Pro Kit

Most Professional Key Fob Programmers in Market

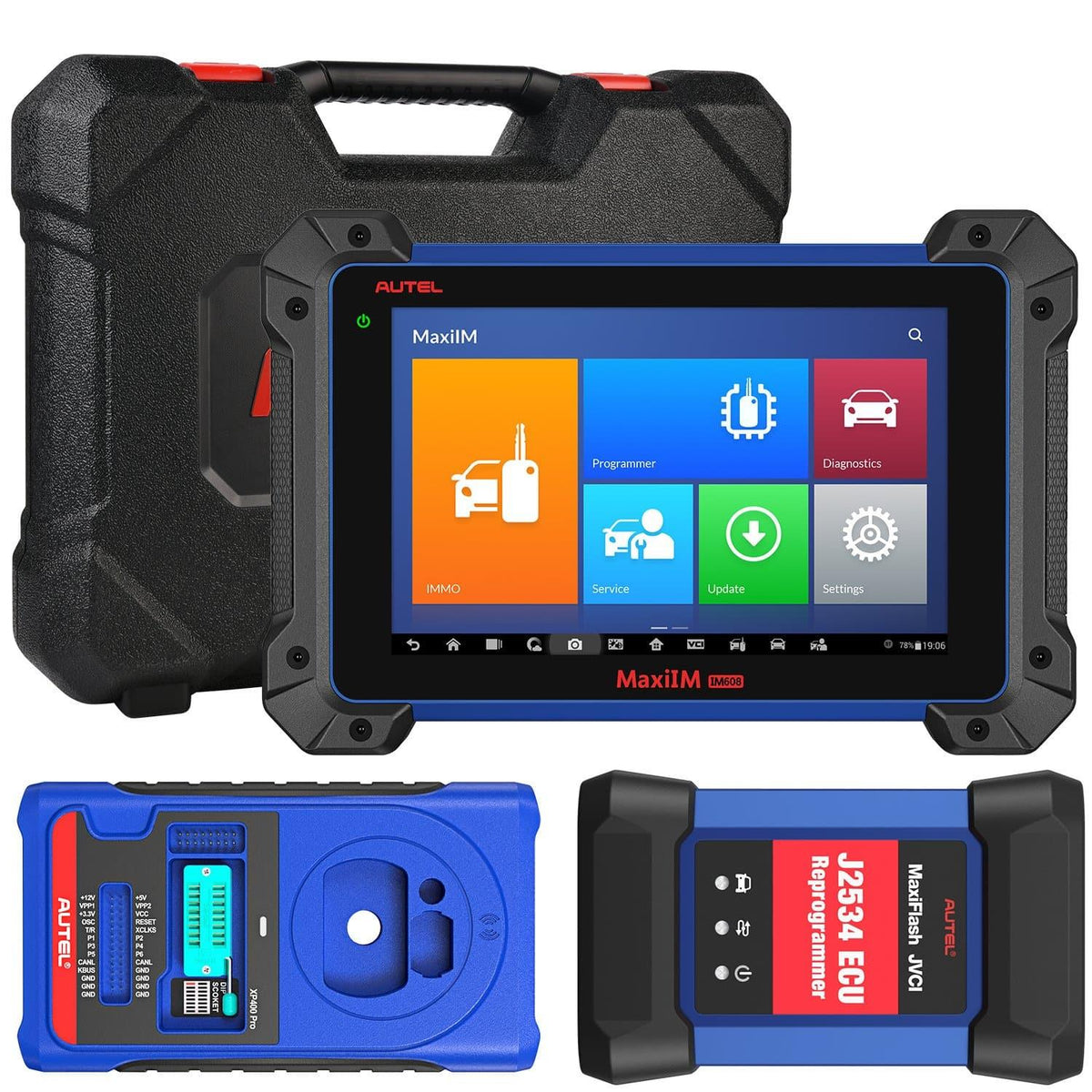

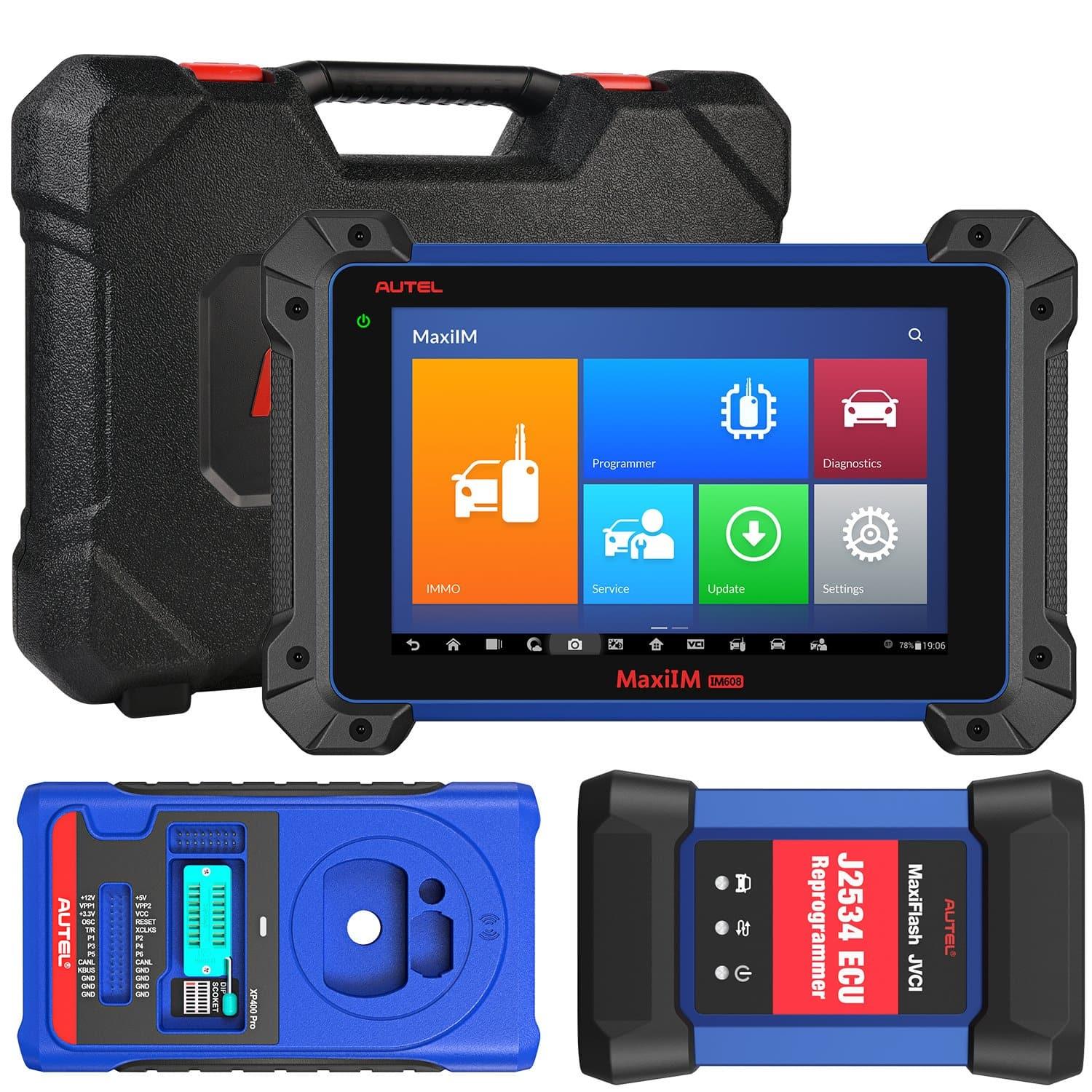

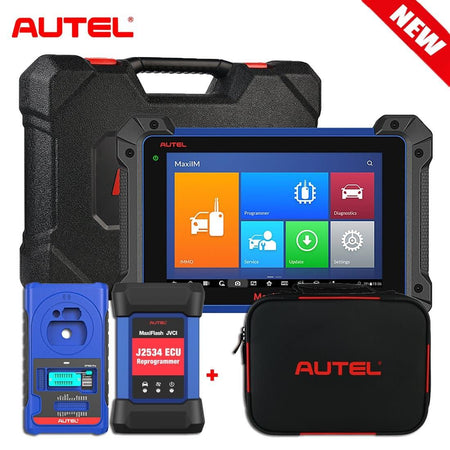

The IM608 PRO KPA is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass-thru programming device, and the Key Programming Adapter kit.

The IM608 Pro key fob programmer enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and passwords directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

The IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active tests, coding, and adaptations.

Autel IM608 Pro Main Features

• IMMO & Key Programming Bundle
• MaxiIM IM608 Pro 10.1-inch Android Touchscreen Tablet
• Program IMMO & Keys for the U.S., Asian and European Vehicles
• XP400Pro Key and Chip Programmer
• JVCI Wireless J2534 Pass Thru Programming Device
• Includes IMKPA Key Programming Adapter Kit

AUTEL IM608 PRO Functions Supported:

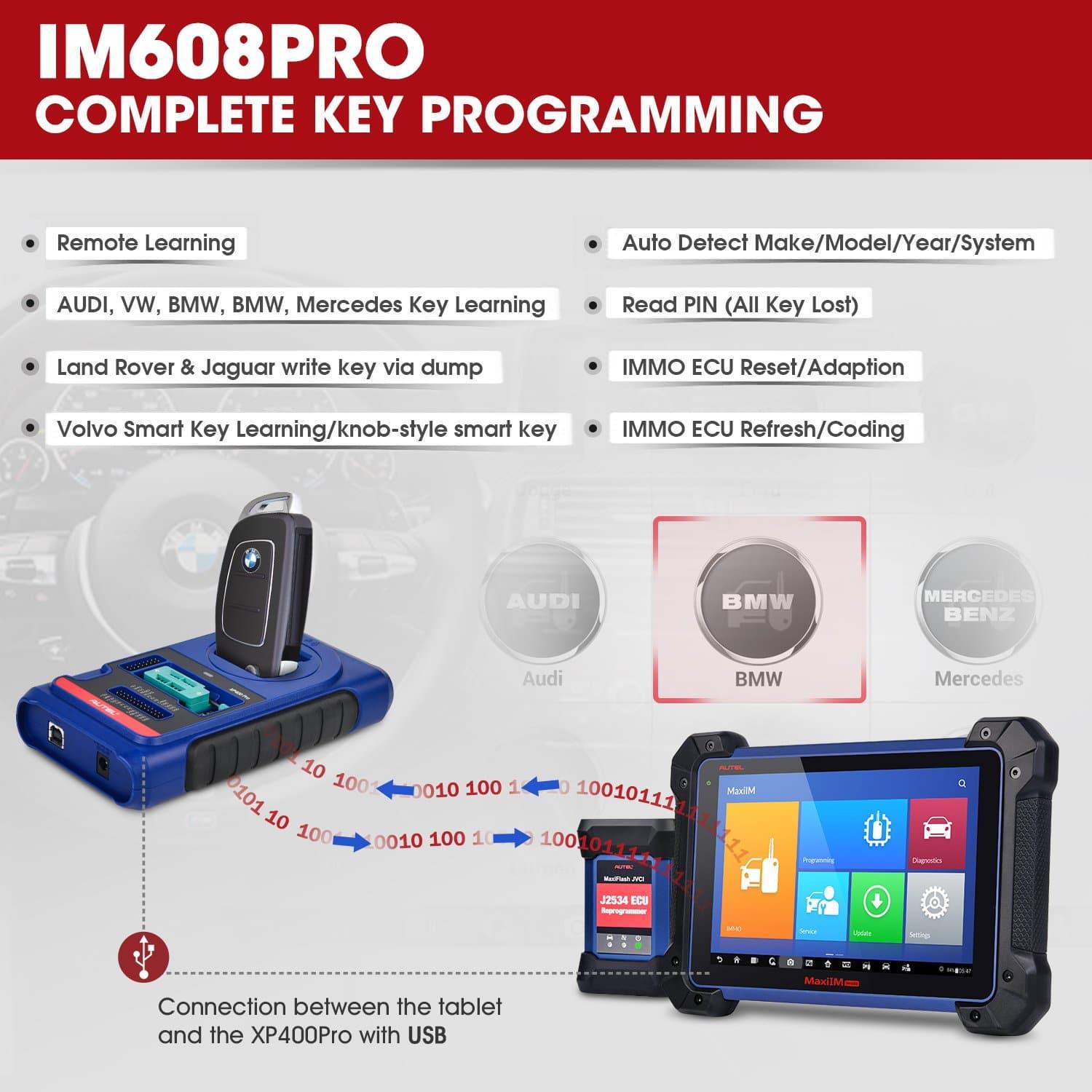

IMMO Functions

1. Auto Detect Make/Model/Year/System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AUDI Q5/A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaption
10. BMW CAS4 Key Learning and Adaption
11. Mercedes Key Learning
12. 2015-2018 Land Rover & Jaguar write key via dump
13. Volvo Smart Key Learning/knob-style smart key
14. Advanced Programming Functions
15. EEPROM Read/Write
16. MCU Read/Write
17. Key Fob Programming
18. Mercedes Key Read/Write
19. Remote Frequency Detect
20. OE-Level Diagnostics

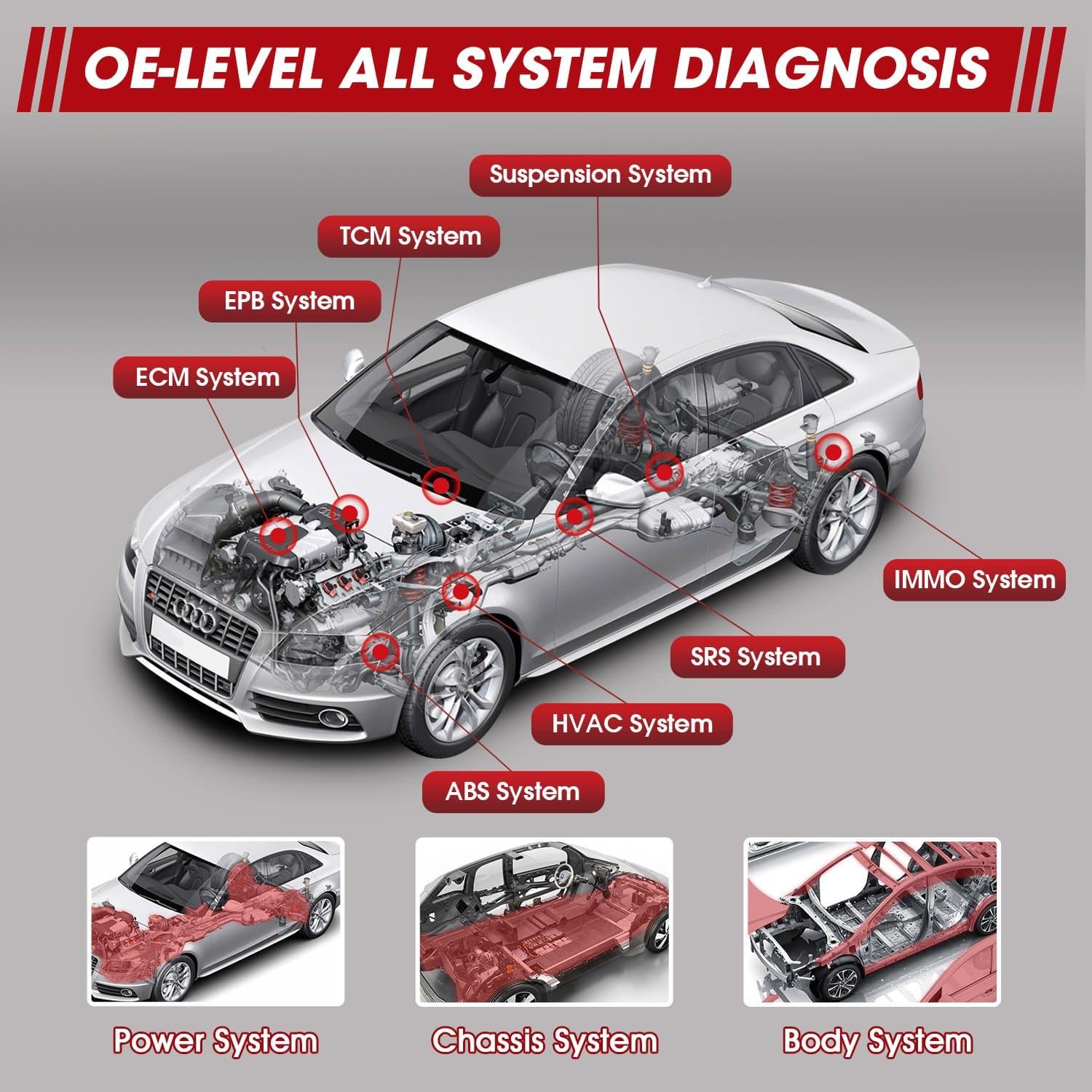

All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

• Oil Service Reset
• Parking Brake Pad Relearn After Replacement
• Steering Angle Sensor Relearn
• Battery Registration and Reset
• Diesel Particulate Filter Regeneration
• Tire Pressure Monitoring System
• Active Test
• ECU Coding
• VW/Audi Component Protection
• Complete Service Functions

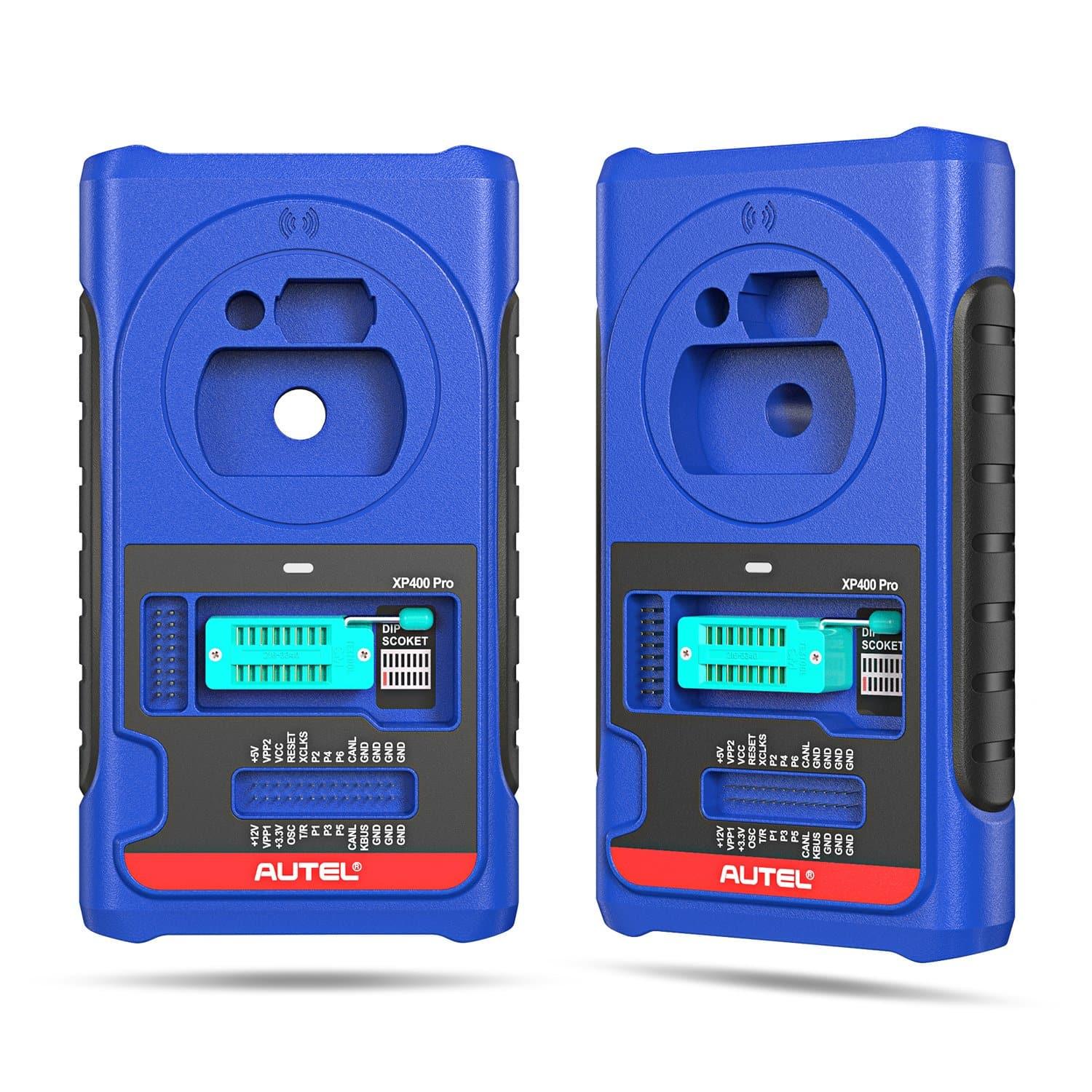

XP400 Pro adds support for following Chips:

• EEPROM-->AMD-->AM29FXXX series chip
• EEPROM--> FUJITSU-->MB29FXXX series chip
• EEPROM-->ST-->M29FXXX series chip
• Engine control module-->ST-->M29FXXX series chip
• IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
• IMMO-->BMW-->EWS3 module read/write function
• REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for the following Adapter Board:

• APB113 PCF79XX adapter board
• APB114 EWS3 adapter board
• APB115 NEC Adapter board
• APB118 NEC ELV adapter board
• APB119 TB28FXXX adapter board
• APB120 TMS370 adapter board
• APB121 AM29FXXX adapter board
• APB122 AM29FXXX adapter board 1
• APB123 AM29FXXX adapter board 2
• APB126 M35080/D80 adapter board
• APB127 MC68HC0(7)05BXX adapter board
• APB128 MC68HC05X32 adapter board

Advanced Key Fob Programming Functions

• Exclusive Smart Mode to guide Key Programming
• Auto Read IMMO Data via OBD
• One-tap Key Programming via OBD & Easy-to-use Remote Programming
• With the newly upgraded key programmer XP400 Pro
• Extensive Vehicle & Functionality Coverage
• Support Diagnostics & IMMO Programming for 10,000+ Models;
• Support Models Up to 2020;

All System Diagnostics and Advanced Maintenance Services;

• Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
• BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
• Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
• GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
• Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
• Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
• FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
• Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
• Jaguar LandRover -- Add Key / All Key Lost up to 2019
• Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump

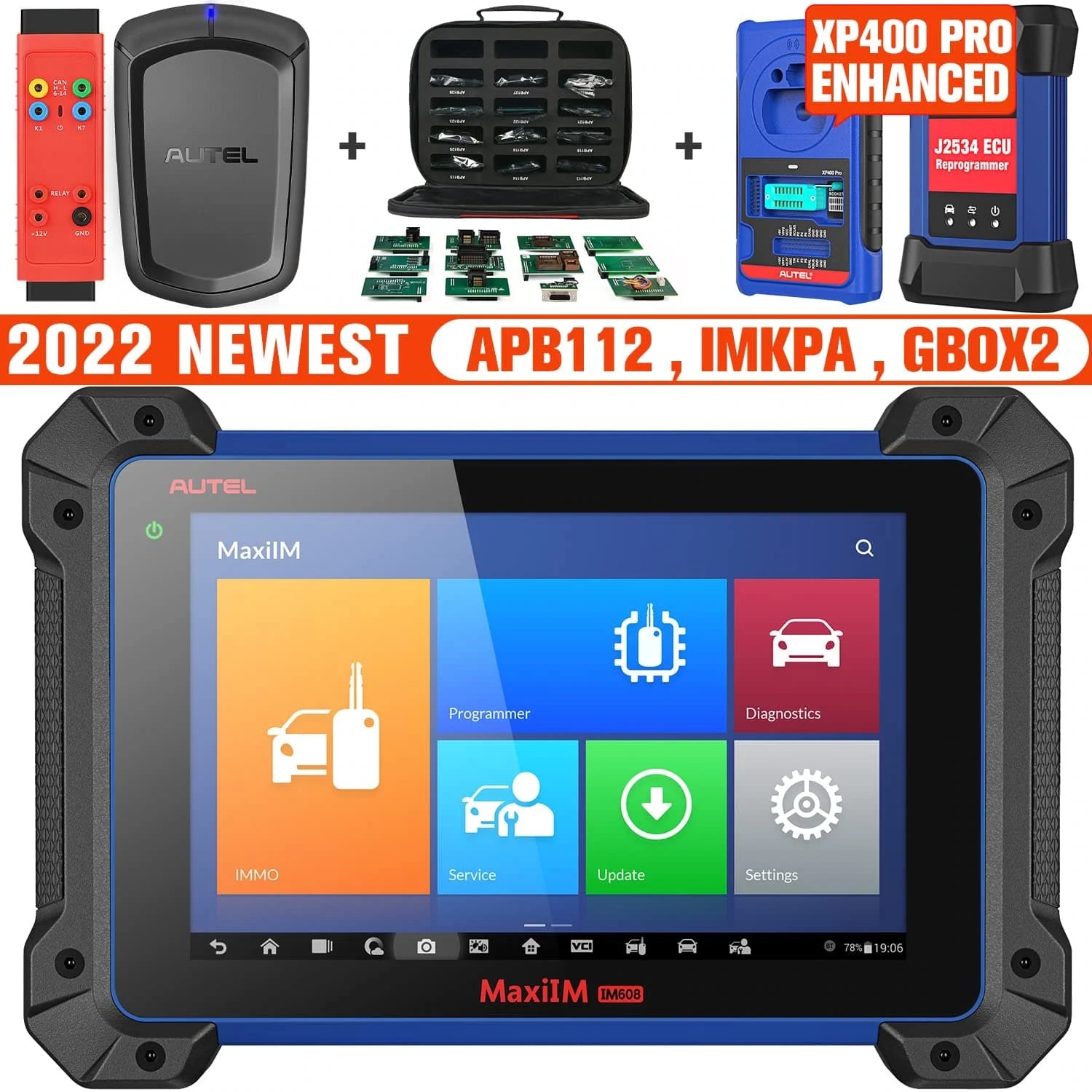

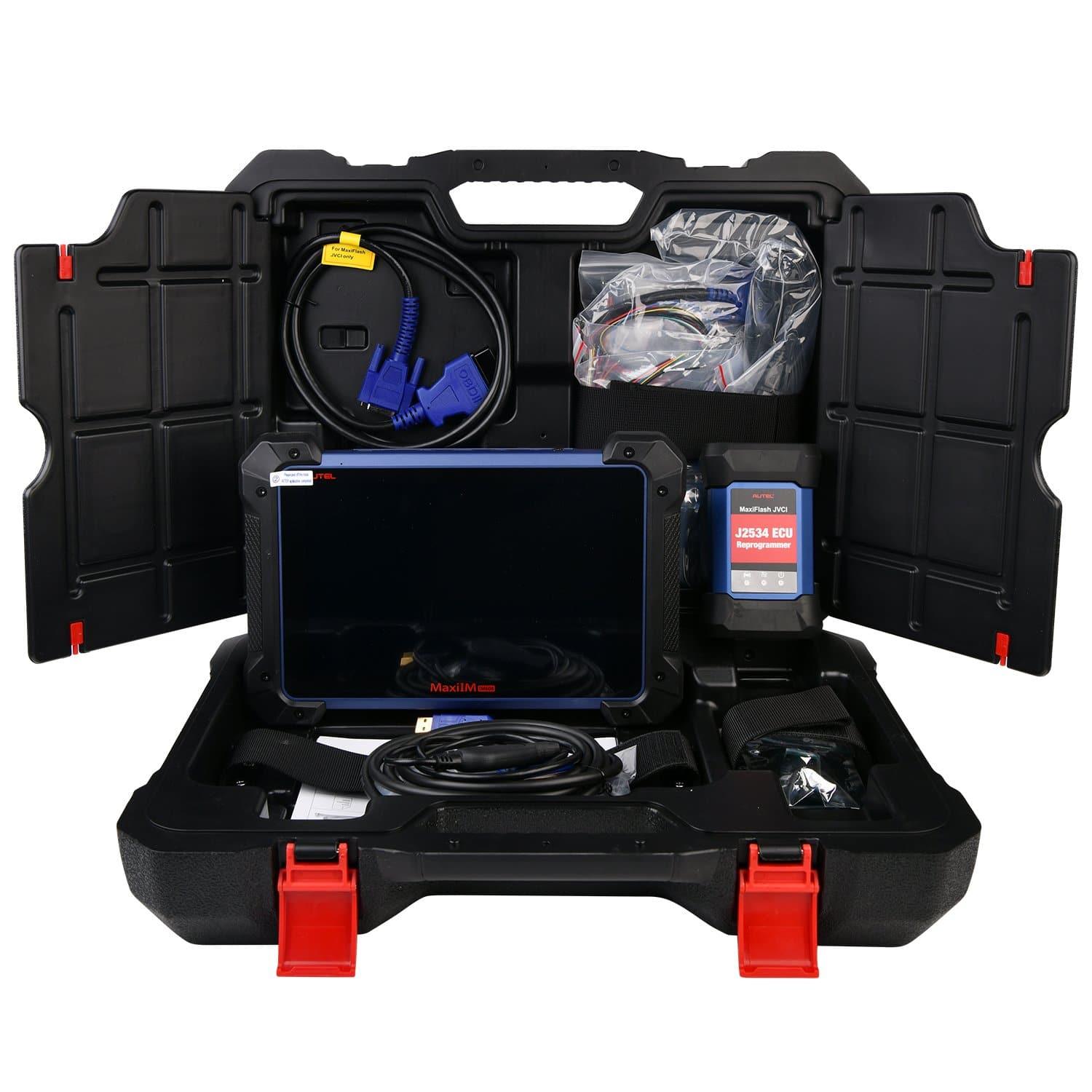

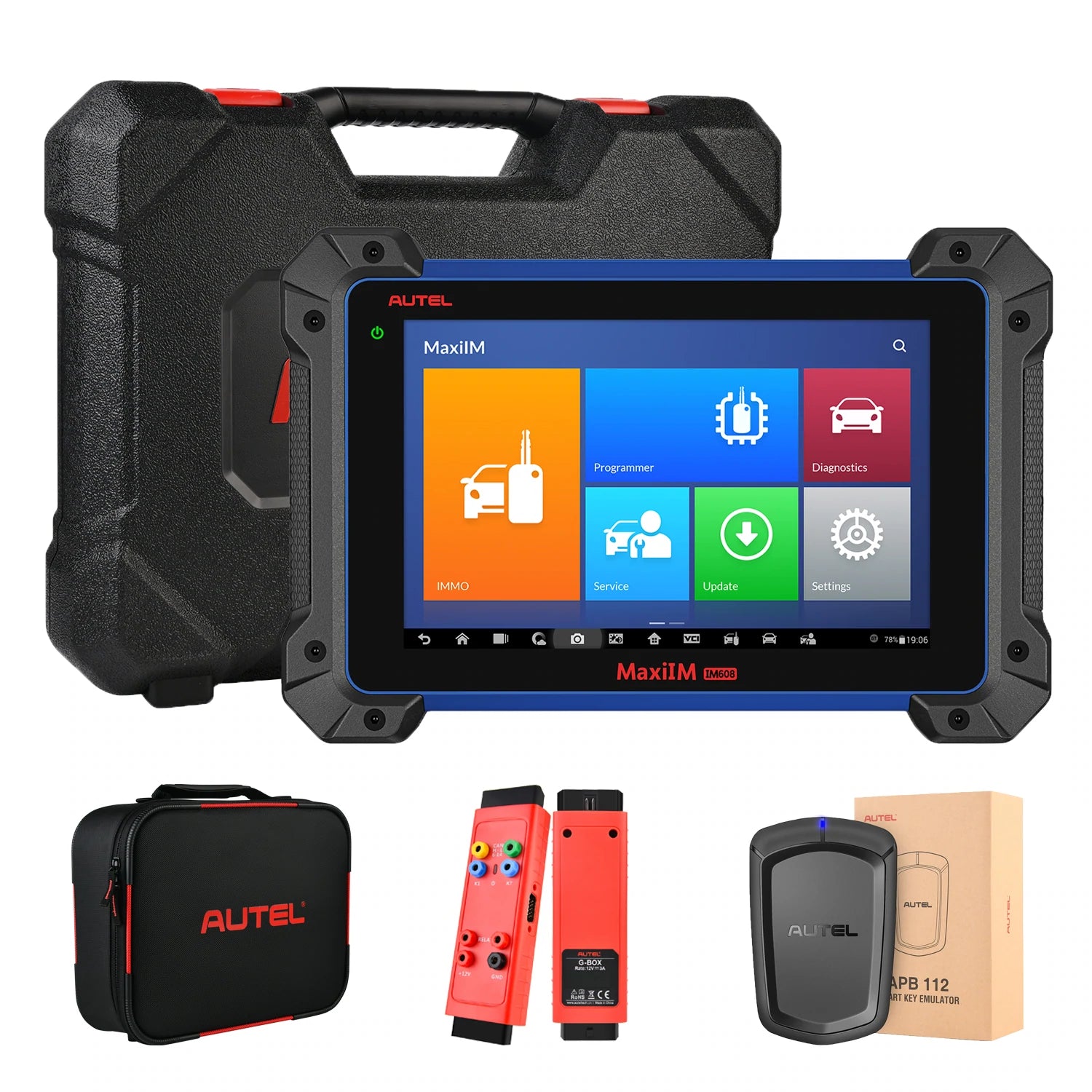

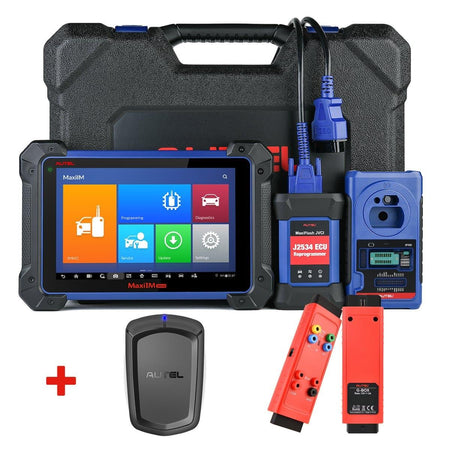

Autel IM608 Pro Packing List:

• 1pc x MaxiIM IM608 Tablet
• 1pc x XP400 Pro Key Programmer
• 1pc x MaxiFlash JVCI ECU Reprogrammer
• 1pc x APB112 (Optional)
• 1pc x Gbox2 (Optional)
• 1pc x Carry Case
• 1pc x Main Cable
• 1pc x USB Cable (2m)
• 1pc x Mini USB Cable
• 1pc x AC/DC Adapter (12V)
• 1pc x Light Fuse - 6*30mm (2pcs)
• 1pc x Cigarette Lighter
• 1pc x AAC001
• 1pc x APC101 (USB Cable)
• 1pc x APB129 (EEPROM Adapter)
• 1pc x APB125 (Mercedes Infrared Collector)
• 1pc x APB103 (MCU_PLCC52)
• 1pc x APB104 (MCU_FQFP64)
• 1pc x APB105 (MCU_FQFP80)
• 1pc x APB106 (MCU_FQFP112)
• 1pc x APB107 (MCU_FQFP144)
• 1pc x APB108 (MCU_FQFP176)
• 1pc x APB109
• 1pc x APB110 (MCU_FQFP176)
• 1pc x APB111 (MCU_FQFP176)
• 1pc x APA002 (EEPROM Socket)
• 1pc x APA101 (Signal Cable)
• 1pc x APA103 (EEPROM Clamp)
• 1pc x APA107 (ECU Clamp)
• 1pc x APA108 (MCU Clamp)
• 1pc x APA109 (MC9S12 Clamp)
• 1pc x Connect Cable

Package List of IMKPA Accessories

• 1pc x APB113
• 1pc x APB114
• 1pc x APB115
• 1pc x APB118
• 1pc x APB119
• 1pc x APB120
• 1pc x APB121
• 1pc x APB122
• 1pc x APB123
• 1pc x APB126
• 1pc x APB127
• 1pc x APB128
• 1pc x Storage Case
