Autel MaxiSYS MS909CV 2025 Newly Version

Autel

Autel MaxiSys MS909CV

2025 Newest Heavy Duty Truck Diagnostic Scanner, ECU Programming, Topology Map 2.0, 36+ Special Functions & 23+ Adaptations, Upgraded Ver. of MS908CV

In stock

5.0 38 reviews

$3,458.28

~~$5,699.00~~ 39% Off $3,458.28

Services and Benefits

Get Exclusive Offers

Fast, Free Shipping

US Free shipping & No Tax.
We offer free shipping straight to your door throughout the contiguous US. It usually takes 3-5 business days for your package to be delivered, so you can sit back and relax, worry-free.

30-Day Risk Free Return

Get a full return & refund within 30 days - for any reason.
Once the item arrives back at our warehouse, the refund process will begin.
for more details please see our refund policy.

One Year Free Warranty

Comprehensive 1-Year Warranty
We provides a straightforward, hassle-free one-year warranty to save you some headaches.

Lifetime Customer Support

We'll Always be There for You.
If you have any questions or concerns, feel free to contact us at sales@auteldealer.com

Payment Methods

Delivery Method

Get Exclusive Offers

Features

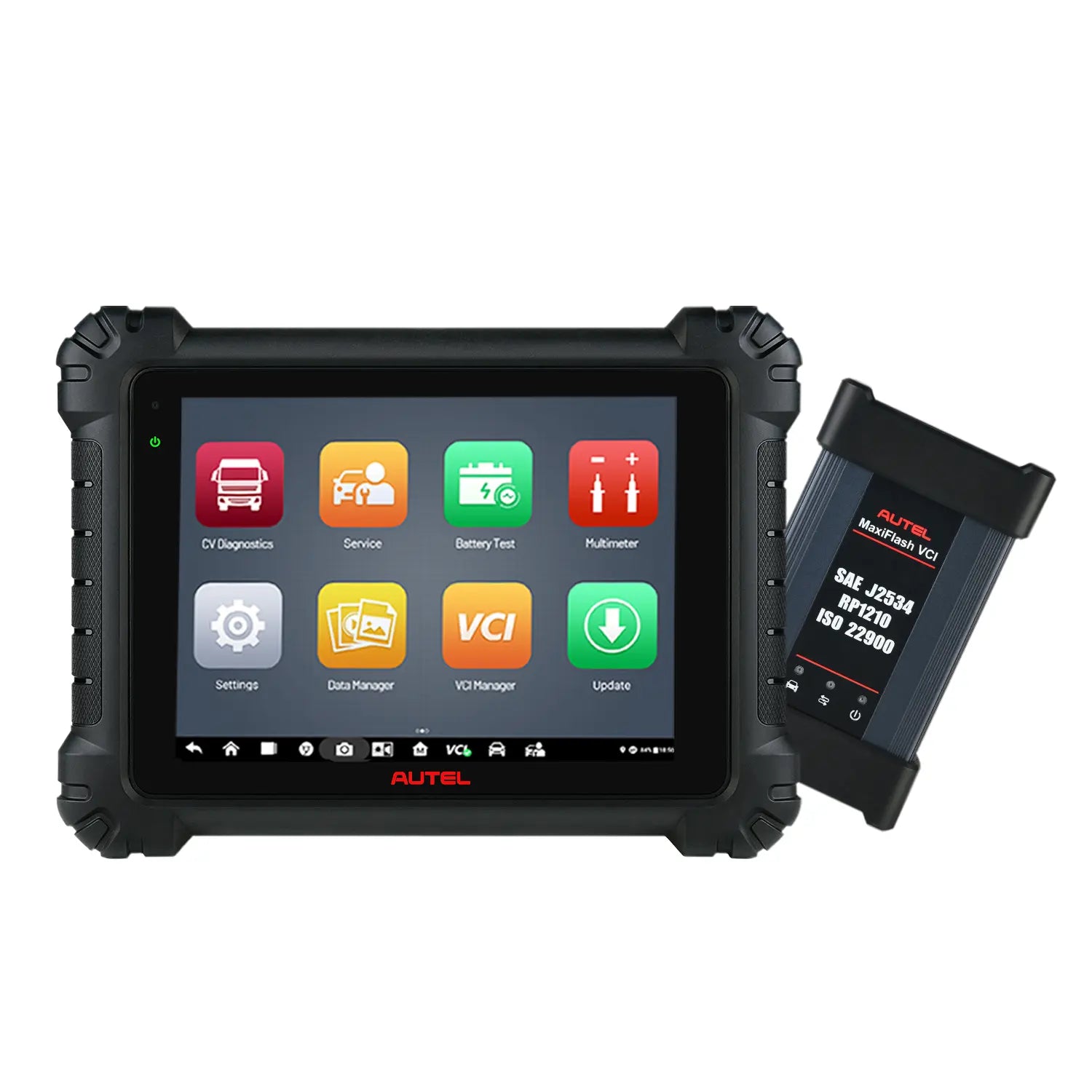

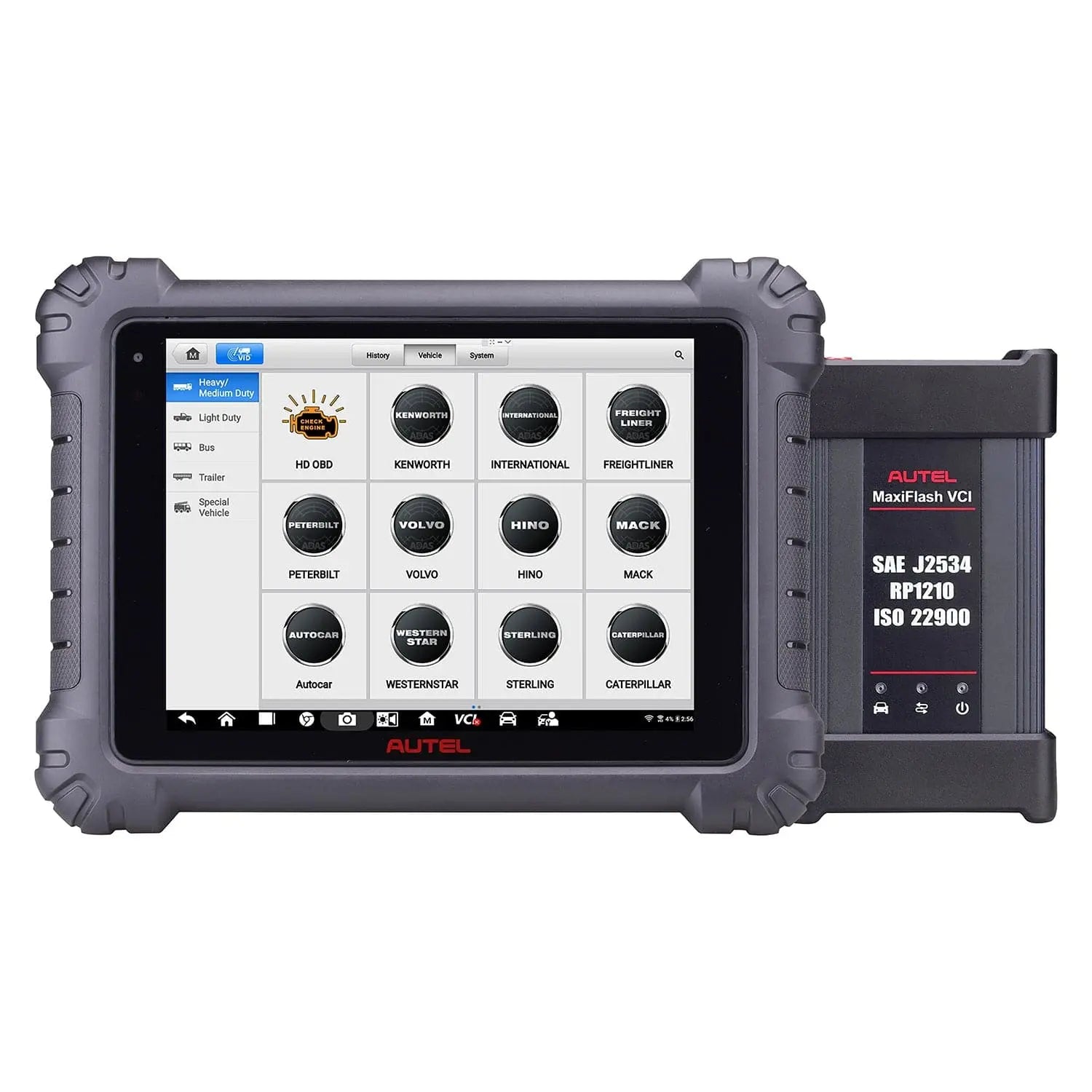

Autel MaxiSys MS909CV Commercial Vehicle Diagnostics Tablet

Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru device, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps.

Autel MaxiSys MS909CV Features

Through Topology Module Mapping, you can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly
With bi-directional control ability, to control various vehicle parts and components like fuel pumps, radiator fan, throttle, mirrors, interior & exterior lights, sound horn, wipers, headlamps, windows, and etc to test its functionality
As Autel TOP Of The Line Factory CV Scan Tool, Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles
Upgraded Octa-Core Processor and 128GB Storage and Android 10.0 Operating System with 9.7” Touchscreen and the Whole-New MaxiFlash VCI to Deliver Smooth Operation
Advanced Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan
Supports Heavy Duty Battery Test & Health Report
1-Year Free Software Updates & Warranty

Specifications

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inchTFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
	BT V5.0 + BR/EDR
	GPS
	USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight
Camera	Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Package

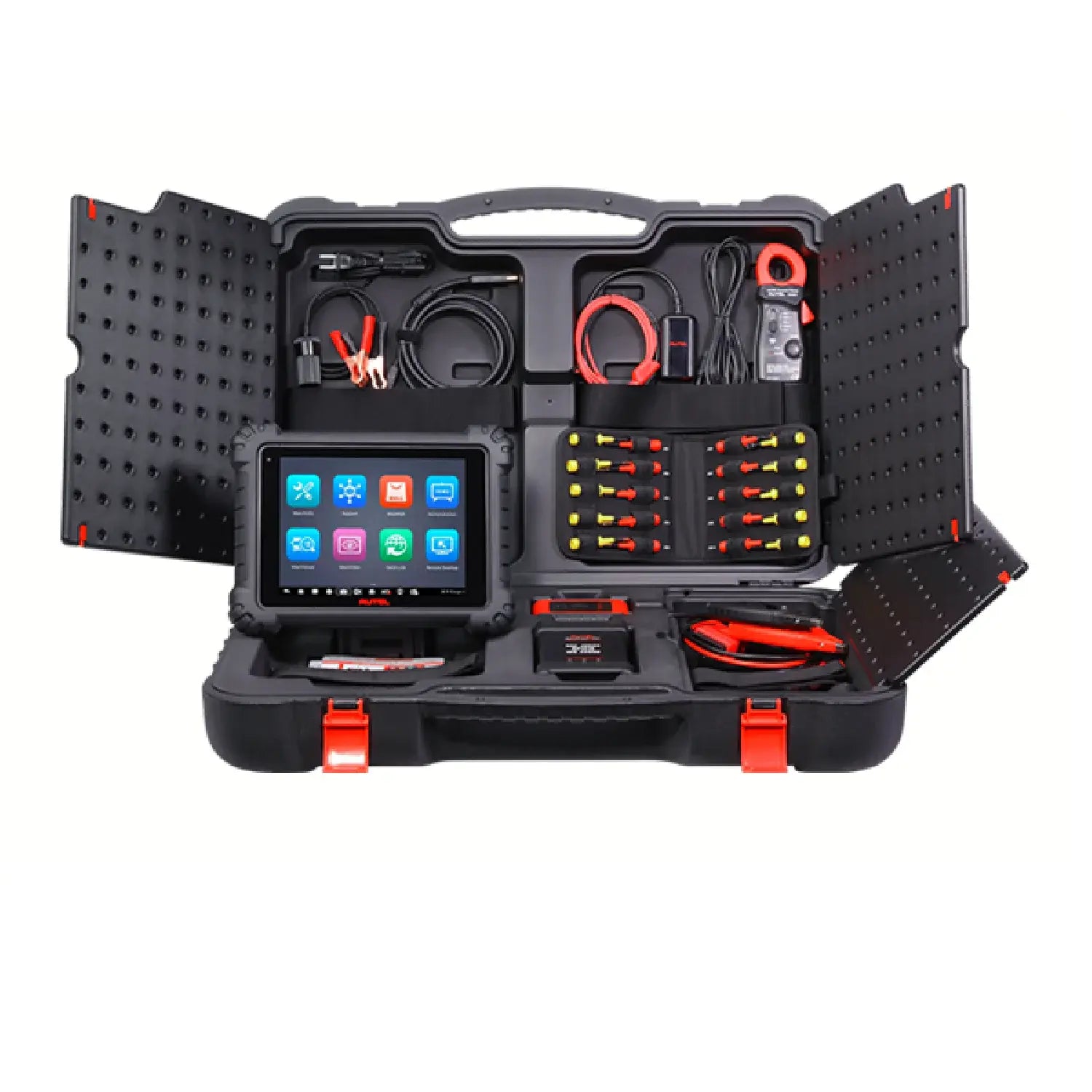

Packing List

1x MS909CV Tablet
1x MaxiFlash VCI
1x AC/DC Adapter (12 V)
1x Main Cable V2.0
1x USB 2.0 Cable V2
1x Type C USB Cable
1x Clipper Cable
1x Cigarette Lighter
2x Light Fuse 6 × 30 mm
1x Deutsch-6
1x Deutsch-9
2x JW1
2x JW2
2x JW3
2x JW4
2x JW5
2x JW6
2x JW7
2x JW8
2x JW9
2x JW10
1x UNI-4
1x MaxiBAS B200
1x 400A Current Clamp
2x Multimeter Test Lead
2x Alligator Clip
2x Multimeter Probe
1x DM100 Digitat Muttimeter
1x Quick Reference Guide
Packing List
1x Soft Cloth
1x Case
1x Carrying Case 687 x 170 x 471mm
