[Pre-Sale] Autel MaxiScope MP608

Name: [Pre-Sale] Autel MaxiScope MP608
Brand: Autel
Price: 659.00 USD
Availability: OutOfStock

MP608 4-channel automotive oscilloscope will transform your Autel next-generation MaxiSys tablet into a professional diagnostic tool

Out of stock

No reviews

$659.00

Services and Benefits

Get Exclusive Offers

Fast, Free Shipping

US Free shipping & No Tax.
We offer free shipping straight to your door throughout the contiguous US. It usually takes 3-5 business days for your package to be delivered, so you can sit back and relax, worry-free.

30-Day Risk Free Return

Get a full return & refund within 30 days - for any reason.
Once the item arrives back at our warehouse, the refund process will begin.
For more details please see our refund policy.

One Year Free Warranty

Comprehensive 1-Year Warranty
We provides a straightforward, hassle-free one-year warranty to save you some headaches.

Lifetime Customer Support

We'll Always be There for You.
If you have any questions or concerns, feel free to contact us at sales@auteldealer.com

Payment Methods

Delivery Method

Get Exclusive Offers

Features

Note: The MP608 will be released soon...

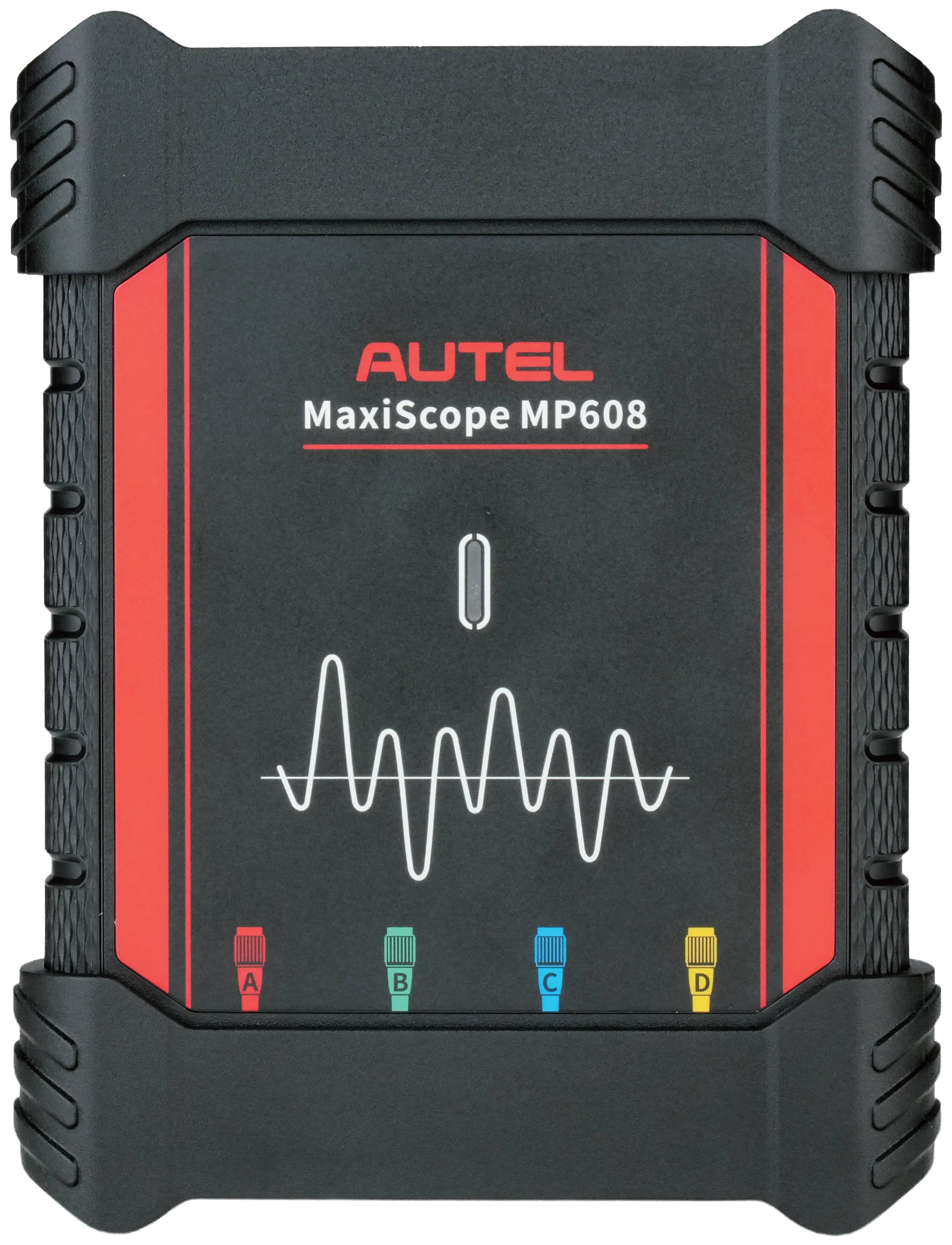

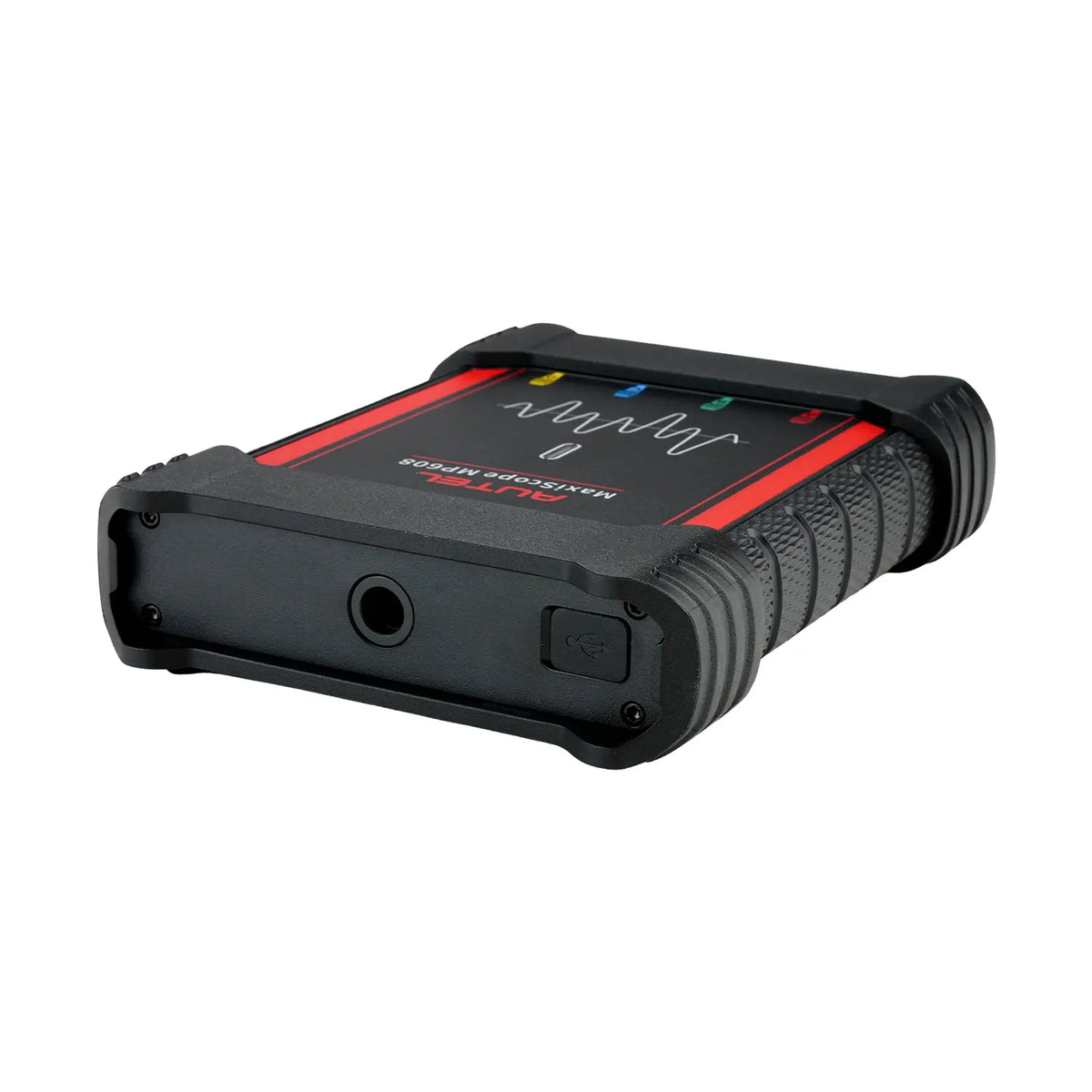

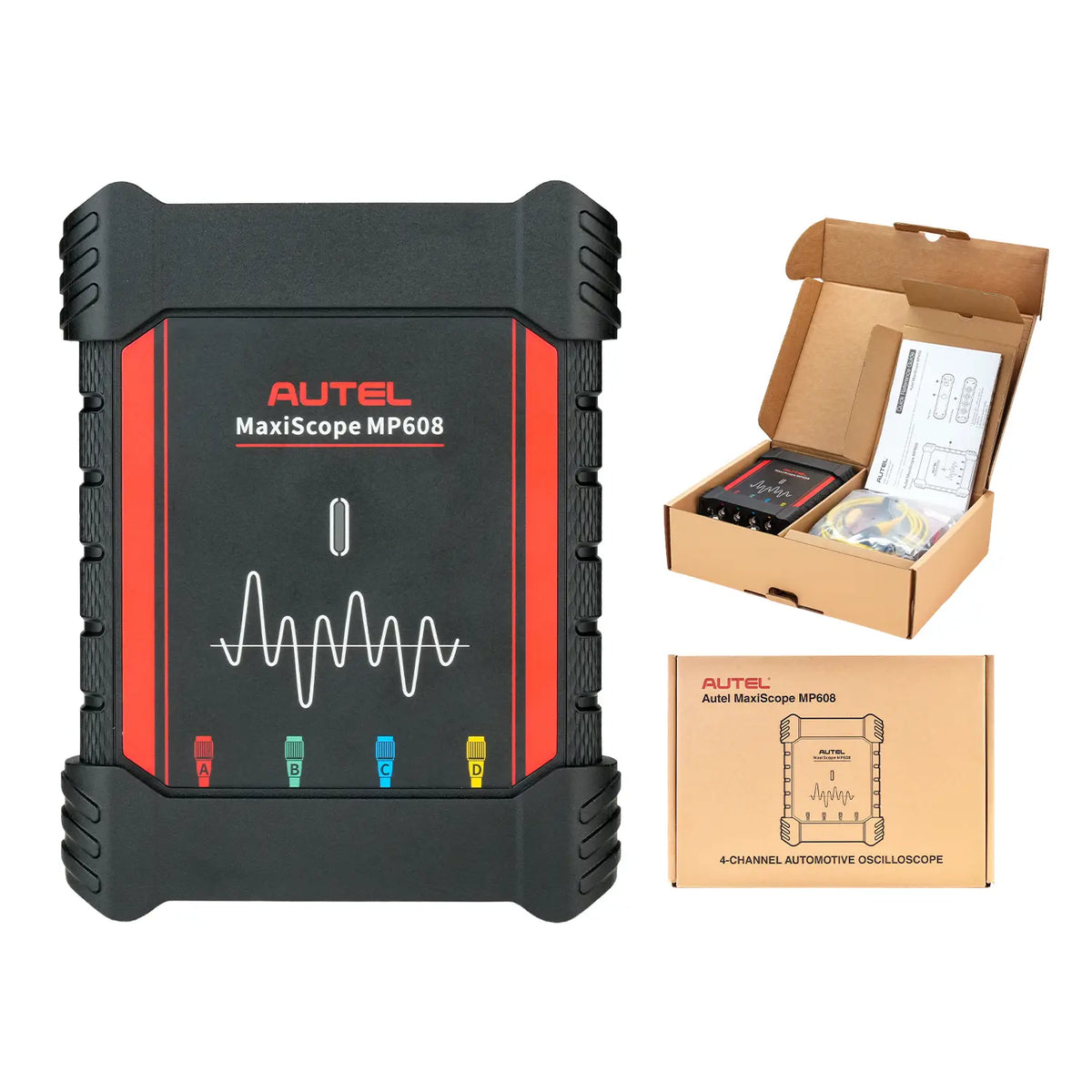

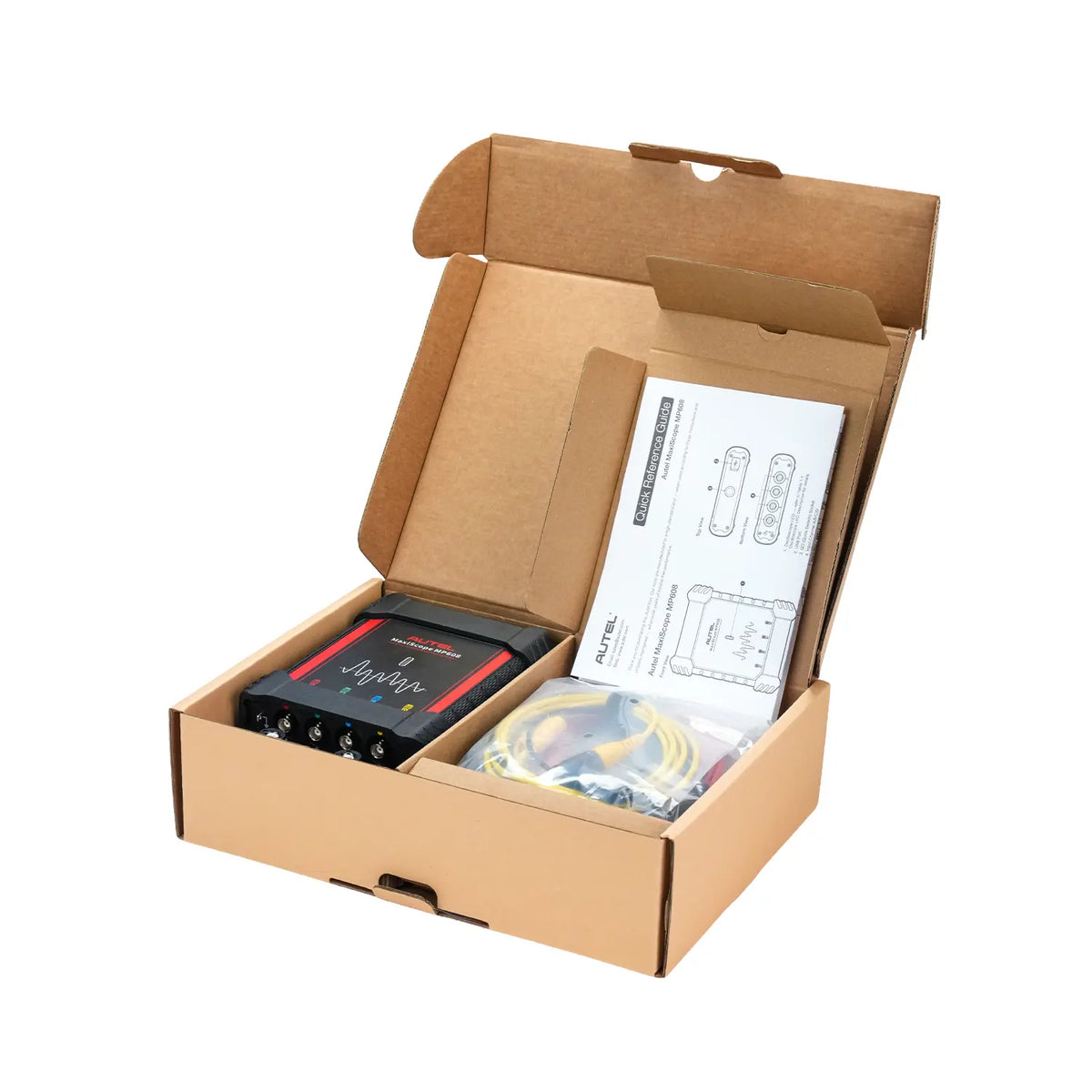

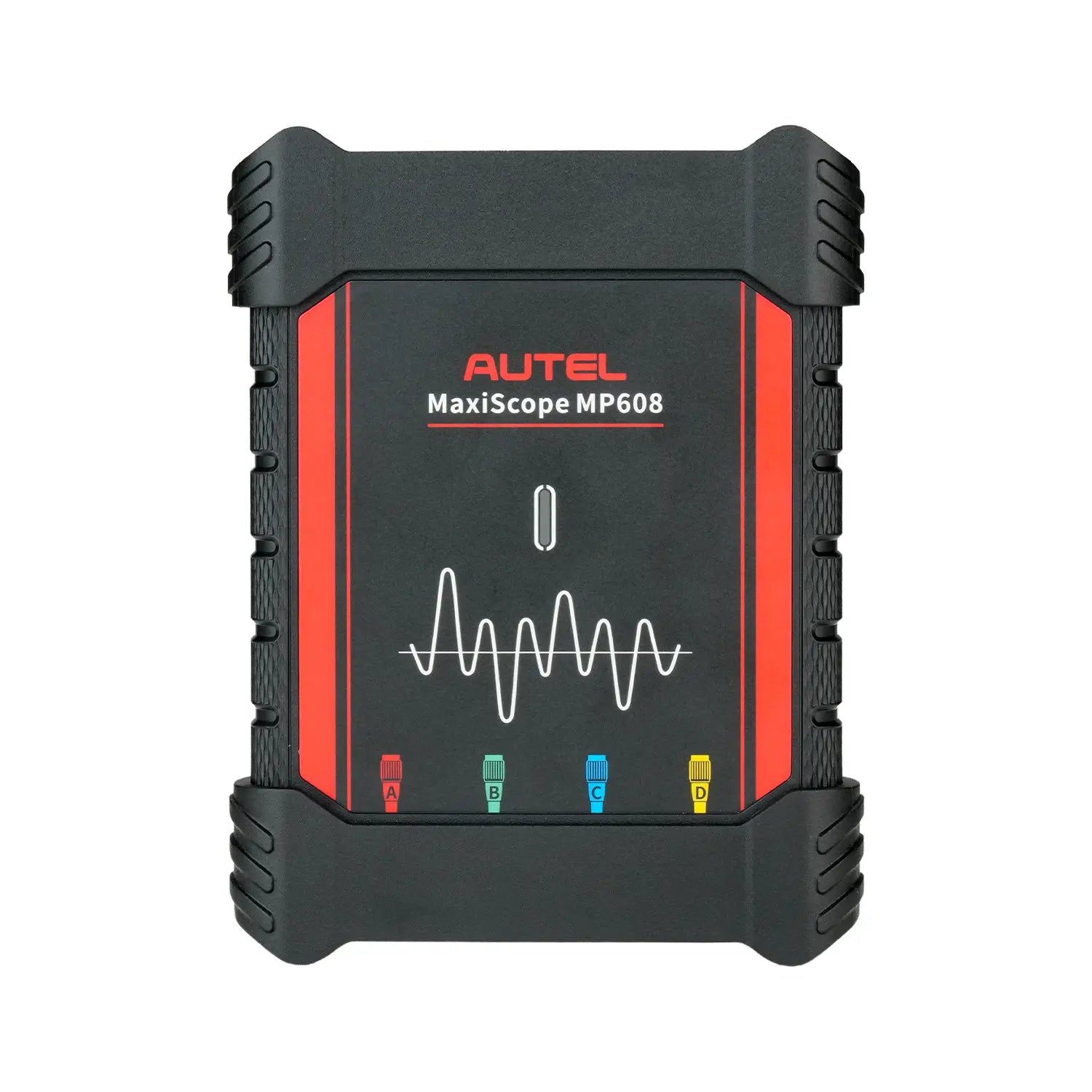

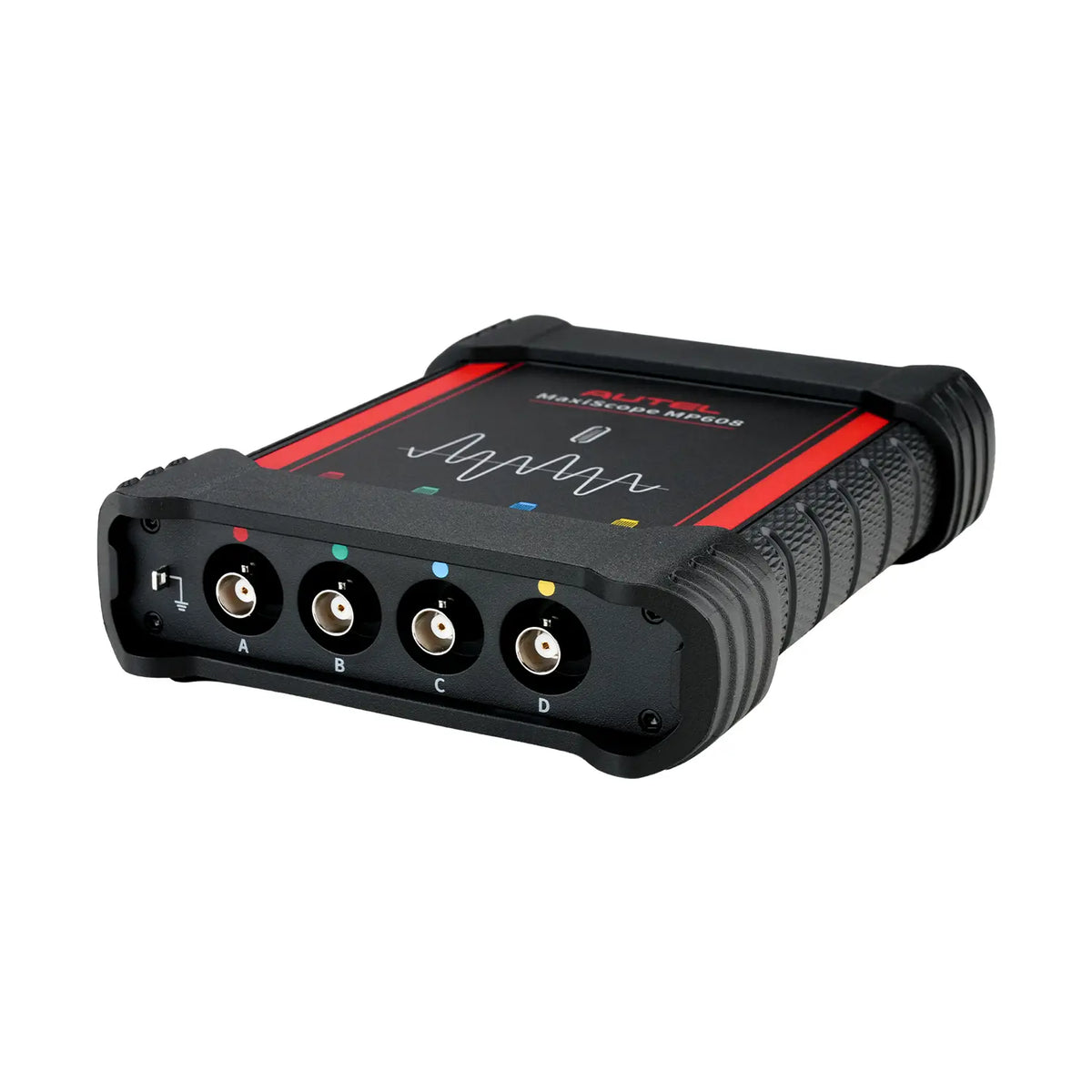

Autel MaxiScope MP608 4-Channel Oscilloscope

The Autel MaxiScope MP608 is a portable, USB-powered, 4-channel automotive oscilloscope that transforms your Autel next-generation MaxiSys tablet into a professional diagnostic tool. With 12-bit vertical resolution, one-click setup, and support for modern protocols like CAN FD/FlexRay, the Autel MaxiScope MP608 delivers precise waveform analysis from an intuitive interface.

Compatible with Autel table scanners

The Autel Tablets compatible with the MP608 are MaxiSys MS909S2/ MS909/ MS909EV/ MS909CV/ MS906 MAX/ MS908S Pro II/ MS906 Pro/ MS906 Pro-TS/ Elite II Pro, MaxiCOM Ultra Lite S, MaxiIM IM608S II/ IM608 Pro II

Autel MaxiScope MP608 Features

1. Professional Diagnostics - Capture More. Diagnose with Confidence.

±1% Measurement Accuracy
12-Bit Vertical Resolution
Trigger Actions for Intermittent Fault Capture
Advanced Measurement Event Table

2. Simplified Operation - Make Advanced Diagnostics Accessible.

AI-Generated Math Channel Formulas
AI-Generated Probe Parameters
Built-in Automotive Case Library

3. Advanced Visualization - See More. Understand Faster.

Oscilloscope Mode
Spectrum Mode
XY Mode
Simultaneous Multi-View Display

4. Connected Workflow - Turn Every Test into a Valuable Asset.

Work-Order-Based Management
Cloud Synchronization
Waveform Notes & Tags

5. Tablet1 Mobility, PC-Level Diagnostics - Work Anywhere. Analyze Everywhere.

Tablet & PC Support
Mobile Testing
Advanced PC Analysis

Autel mp608

Specifications

Item	Description
Channels	4
Bandwidth	200MHz
Maximum Sample Rate	1 or 2 channels: 80 MS/s* 3 or 4 channels: 20 MS/s* * MS/s = mega samples per second 1) Select arbitrary one channel, the maximum sample rate is 80 MS/s. 2) Select two channels (AC, BC, AD, or BD), the maximum sample rate is also 80 MS/s. 3) Select two channels (AB/CD) or more than three channels, the maximum sample rate is 20 MS/s.
Input Ranges (Full Scale)	±50 mV to ±200 V
Sensitivity	10 mV/div to 40 V/div
Input Coupling	AC/DC
Input Impedance	1 MΩ in parallel with 25 pF
Vertical Resolution	12 bits
Buffer Memory	32M samples shared among active channels
Time Base Ranges	100 ns/div to 1000 s/div
Connection	USB 2.0
DC Accuracy	±1%
Storage Humidity Range	5 to 95 % RH, non-condensing

Package Shipping

Fast and reliable delivery designed for your peace of mind.

Shipping Fees

We offer free shipping for all products within the United States and Canada.

Processing Time

Your orders are processed and handed over to the courier within 1 business day after payment confirmation. Once shipped, you will receive a confirmation email with tracking details.

Delivery Schedule

Estimated delivery times vary depending on your location and carrier. On average, orders arrive within 3–7 business days after dispatch.

Carrier	Estimated Delivery	Shipping Fee
UPS	3–5 business days	Free
USPS	5–7 business days	Free
FedEx	3–7 business days	Free
DHL	3–7 business days	Free

Note: Delivery times are estimates and may vary due to factors such as location, carrier delays, or external conditions.

Address Updates

If you need to update your shipping address, please contact us as soon as possible before your order is shipped. Once the package has been handed over to the carrier, address changes may not be possible.

Shipping Origin

Orders are fulfilled from the nearest available warehouse based on your delivery address to help optimize delivery time.

USA Orders: Typically shipped from California or New Jersey
Canada Orders: Typically shipped from Vancouver

In some cases, orders may be shipped from alternative warehouses depending on stock availability.

Return & Refund Policy

We offer a 30-day return policy for items returned in their original condition and packaging.

If your product arrives defective or not as described, please contact our support team for assistance.

Once your return is received and inspected, we will process your refund to the original payment method.

Refund processing times may vary depending on your payment provider.

For return requests or more details, please contact us at sales@auteldealer.com or visit our Return Policy.

Reviews Download

[Pre-Sale] Autel MaxiScope MP608

Add to Cart

[Pre-Sale] Autel MaxiScope MP608

MP608 4-channel automotive oscilloscope will transform your Autel next-generation MaxiSys tablet into a professional diagnostic tool

Get Exclusive Offers

Autel MaxiScope MP608 4-Channel Oscilloscope

Compatible with Autel table scanners

Autel MaxiScope MP608 Features

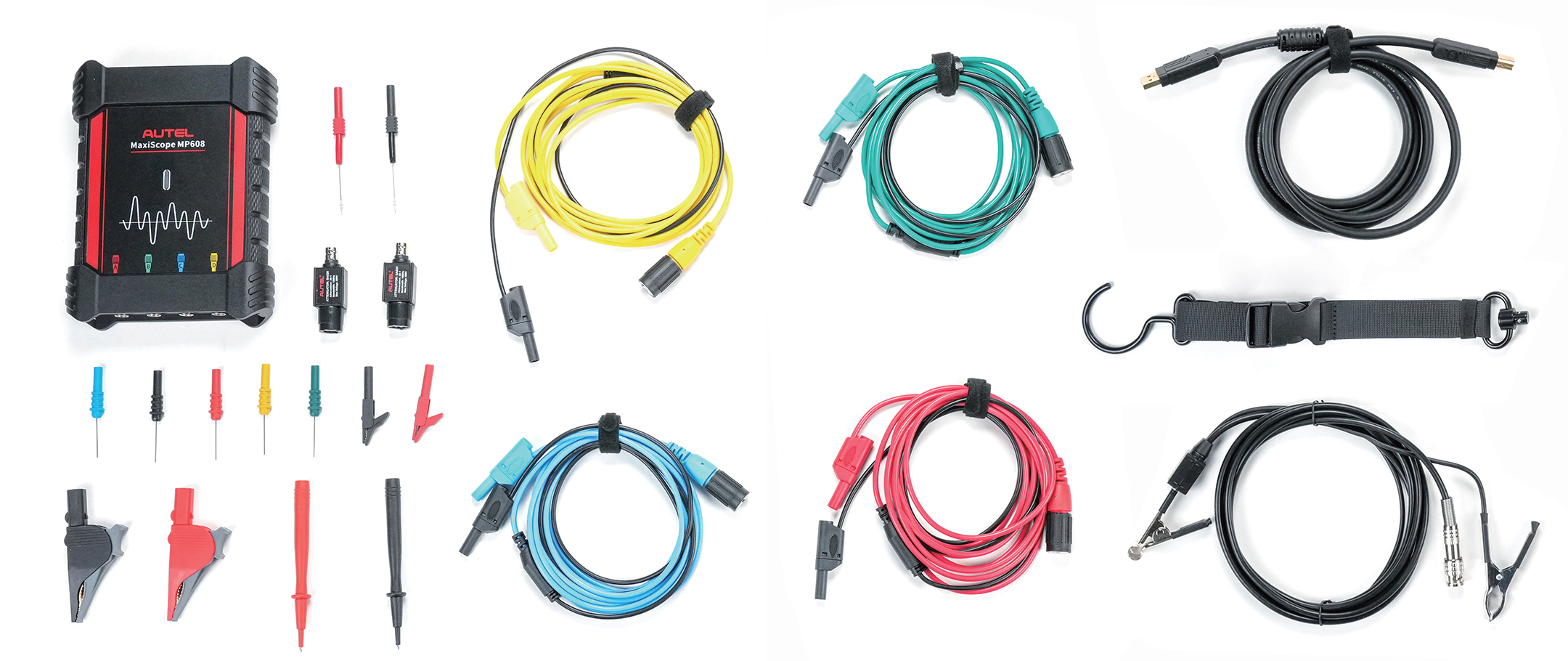

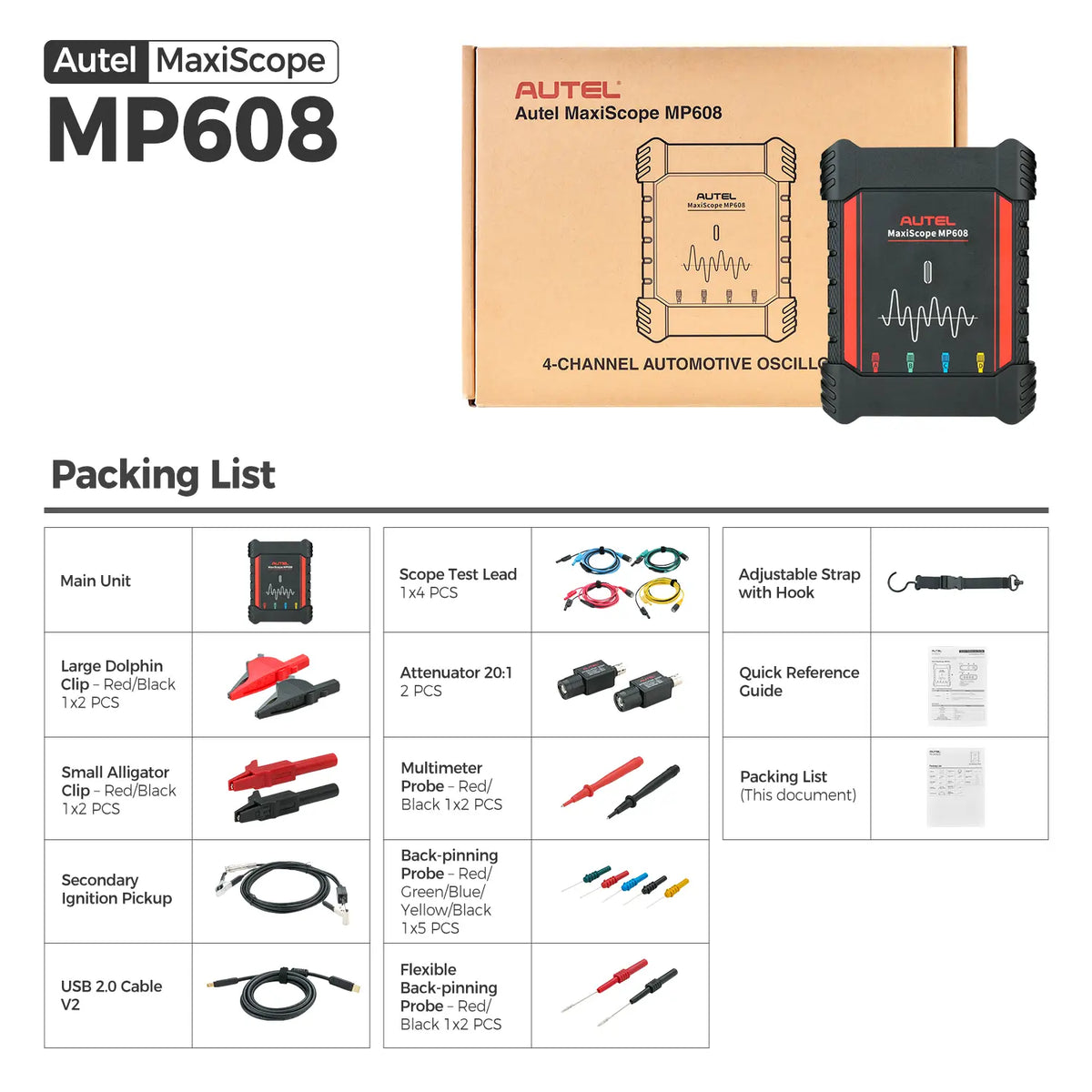

Packing List
