Autel

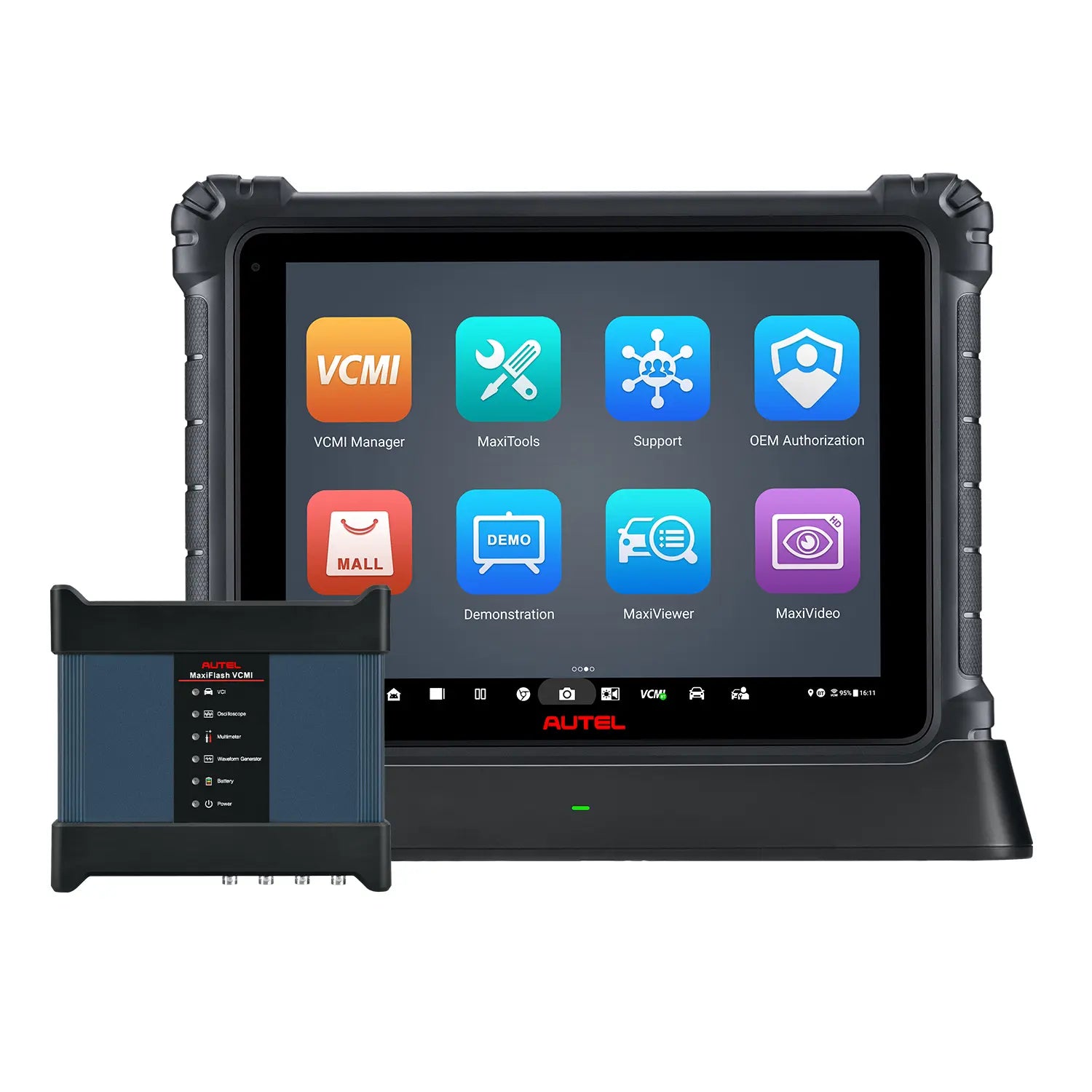

Autel MaxiSys Ultra

2025 Top Diagnostic Scanner With 5-in-1 VCMI Oscilloscope, ECU Programming & Coding, 40+ Hot Services, Advanced Topology Map 2.0, Upgraded Ver. of MS919/ MS909/ Elite II

In stock

5.0 31 reviews

$3,495.08

~~$5,695.00~~ 39% Off $3,495.08

Services and Benefits

Get Exclusive Offers

Fast, Free Shipping

US Free shipping & No Tax.
We offer free shipping straight to your door throughout the contiguous US. It usually takes 3-5 business days for your package to be delivered, so you can sit back and relax, worry-free.

30-Day Risk Free Return

Get a full return & refund within 30 days - for any reason.
Once the item arrives back at our warehouse, the refund process will begin.
for more details please see our refund policy.

One Year Free Warranty

Comprehensive 1-Year Warranty
We provides a straightforward, hassle-free one-year warranty to save you some headaches.

Lifetime Customer Support

We'll Always be There for You.
If you have any questions or concerns, feel free to contact us at sales@auteldealer.com

Payment Methods

Delivery Method

Get Exclusive Offers

Features

Autel Maxisys Ultra with Database, Topology Module Mapping and Split Screen Display

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features, the Ultra offers the technicians advanced diagnostics. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Autel Maxisys Ultra Features

Autel updates provide latest OE level coverage for more than 80 US domestic, Asian and European vehicles, including supercar
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Ultra features Topology Mapping 2.0, which is able to display a CAN BUS tree with color coded modules in one page, which can present full system diagnostic results visually and make you work just to the point precisely
Different from traditional scan tools, the automotive diagnostic scan tool Autel Ultra is equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, it can perform super precise and most overall diagnostic and services on 99% vehicles on the market
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM 256GB On-board Memory
Display	12.7 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.:	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

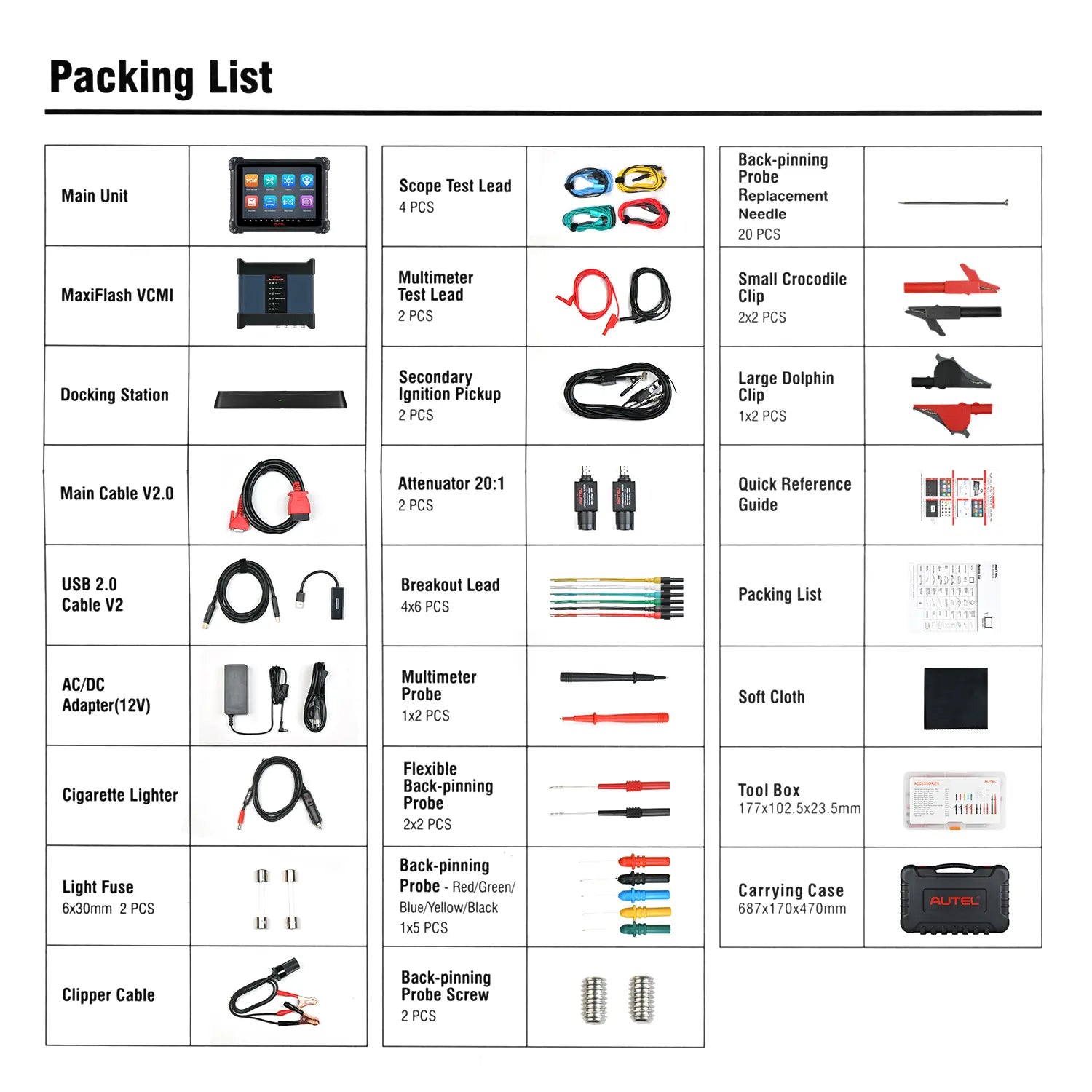

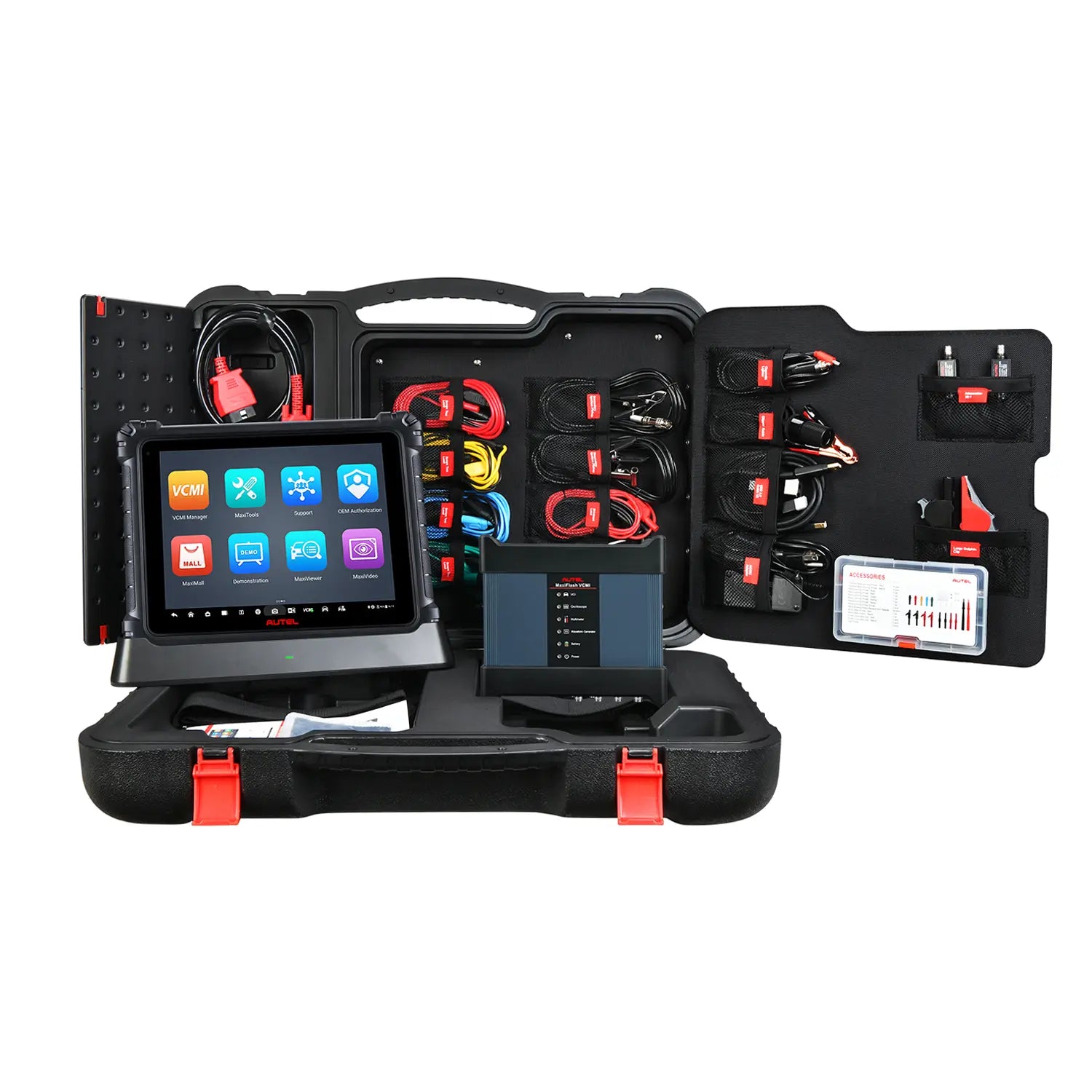

Package

Packing List

Maxisys Ultra Main Unit
MaxiFlash VCMI
Docking Station
Main Cable V2.0
USB 2.0 Cable V2
AC/DC Adapter(12V)
Cigarette Lighter
2 PCS*Light Fuse (6x30mm )
Clipper Cable
4 PCS*Scope Test Lead
2 PCS*Multimeter Test Lead
2 PCS*Secondary Ignition Pickup
2 PCS*Attenuator 20:1
4x6 PCS*Breakout Lead
1x2 PCS*Multimeter Probe
2x2 PCS*Flexible Back-pinning Probe
1x5 PCS*Back-pinning Probe - Red/Green/Blue/Yellow/Black
2 PCS*Back-pinning Probe Screw
20 PCS*Back-pinning Probe Replacement Needle
2x2 PCS*Small Crocodile Clip
1x2 PCS*Large Dolphin Clip
Quick Reference Guide
Packing List
Soft Cloth
Tool Box (177 x 102.5 x 23.5 mm)
Carrying Case (687 x 170 x 470 mm)
